Scribble Art

Let’s scribble! There are other papers that have used scribbling for halftoning images, but I want to add a bit more math. A simple model is to have a circle that travels along a base curve. We can parameterize this as: . To use this for halftoning, we should know the curve length (per period) […]

Categories
halftoning image processing

HalftonePAL

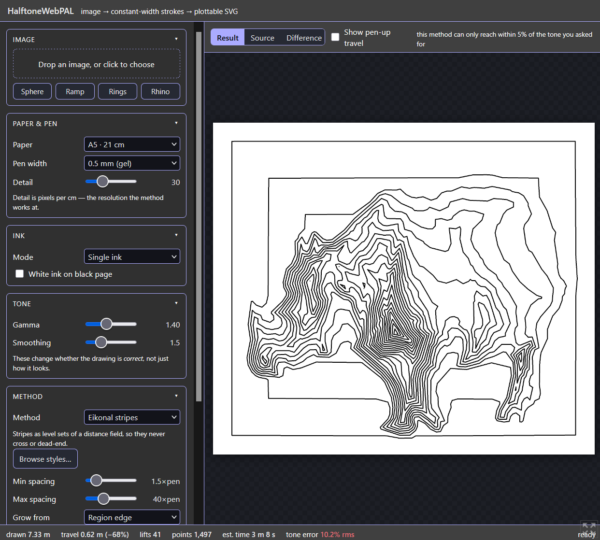

HalftonePAL is a program written in Processing that lets you make halftoned versions of your images using circles, dots, and lines. You can change the size of the shapes, which pattern to use, switch between black or white paper (and the opposite ink), and more! It can save the output as SVG, JPG, or TXT […]

Categories
halftoning image processing penplotter

Approximate Circle Packing

I’d like to be able to have a region that is densely packed with non-overlapping circles, whose sizes vary spatially in a pre-defined way. There are lots of resources for Poisson-disk sampling, but that doesn’t result in snugly packed circles. Time to do some tinkering! Random search The laziest way to do this: try to […]

Categories
halftoning image processing

Four Images from Two Transparencies

Previously, I used polarized sheets to generate images. That’s too complicated to physically make, so it’s time to try something else. How about just two transparent films with black marks? Then we can try to encode four images that are revealed by overlapping the two, and rotating the top film. This sort of rotation problem […]

Categories
halftoning image processing penplotter Uncategorized

More Fourier Noise Contours

Previously, I used single-frequency Fourier noise to do some halftoning. This time, I’ll use broad-frequency noise. I’ll filter 2D white noise with a gaussian with standard deviation . This reduces the high-frequency content. Let’s call the filtered noise , and the gradient-scaled version. Skipping all the tedious probability work, the pdf of the gradient-scaled noise […]

Categories
halftoning image processing penplotter

Estimating Zero-Contour Length of Fourier Noise

One way to do stochastic halftoning is to draw contours of noise functions. For example, you can make 2D single-frequency Fourier noise, and draw a contour wherever the noise crosses the zero-level. If you do this with wavelength L, over an area of A, the total arc length turns out to be very nearly 2.2*A/L. […]

Categories
halftoning image processing

Checkerboard Distortion Halftoning

In a previous post, I deformed a grid of lines to halftone an image. I wanted to do the same thing with a checkerboard, but I figured that it would be similarly difficult and would require optimization. So I used the same optimization framework with a checkerboard, applied it to a brightness ramp, and found: […]

Categories
halftoning image processing penplotter

Grid Distortion Halftoning

Imagine that we have a screen door, and we want to push around the wires to make an image. It’s not a simple problem! There’s a fixed number of wires in each direction, so how do we properly distribute them? Let’s define a pair of phase maps for x and y, and . We’ll draw […]

Categories
halftoning image processing penplotter

Spiral Halftoning

Let’s halftone an image with some overlapping wiggly spirals! I want to draw N lines, spiraling out from the center of the image, and have them each slightly offset. With the proper offset, this will create the (approximately) proper darkness. With image darkness k, line width w, and line spacing L, we can get a […]

Categories
etcetera fluids halftoning image processing

Advection-Diffusion of Ink

I want to have the ink on a photo clump together, leading to a black and white image. This is a sort of flow, so my first thought is to take a look at the advection-diffusion equation. Let’s say that the ink distribution across an image is , the diffusion factor is , and the […]
